7015601/15020

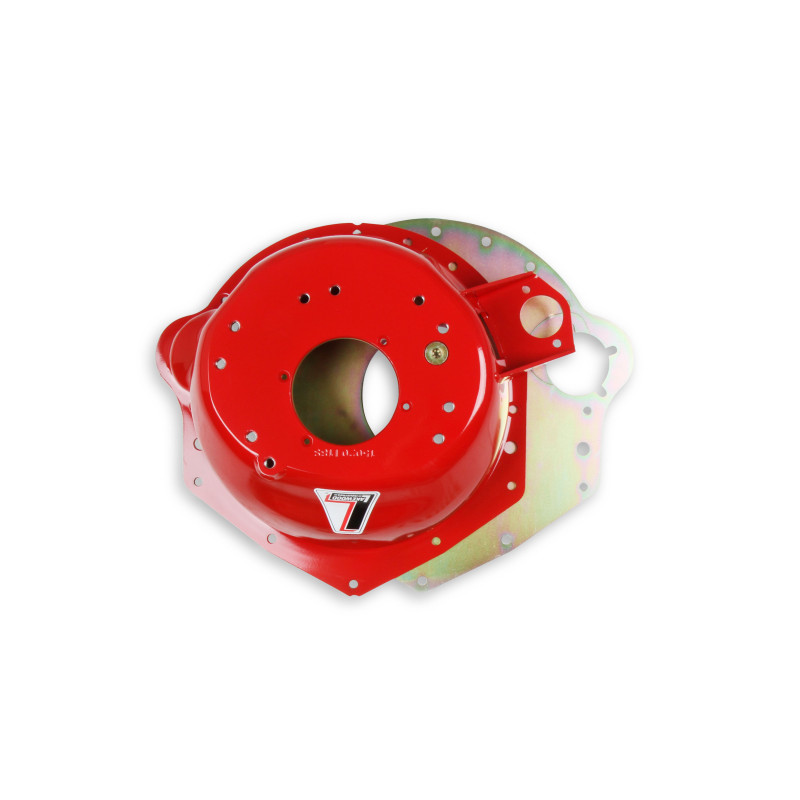

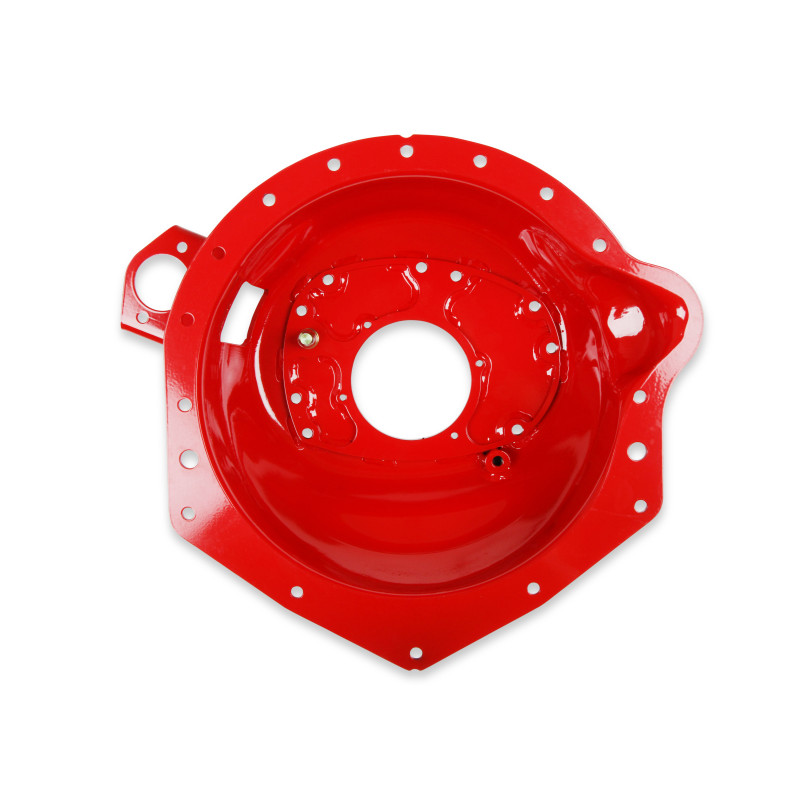

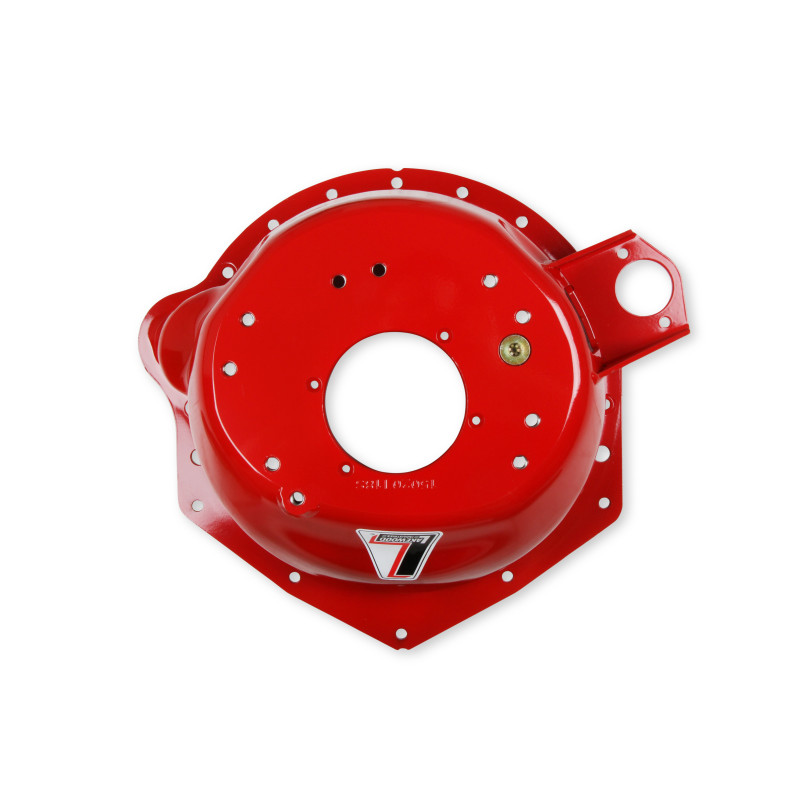

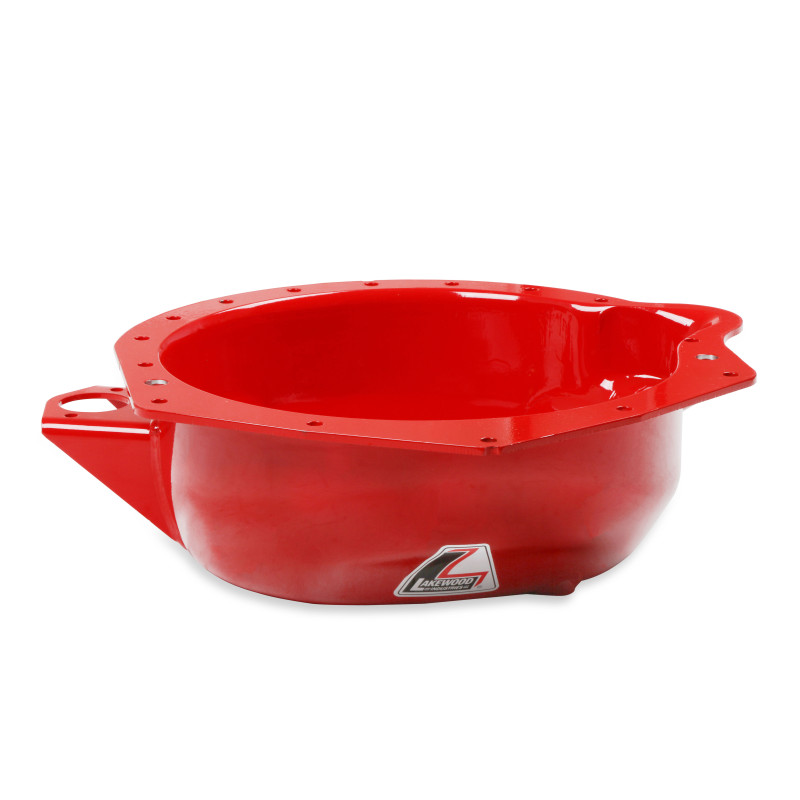

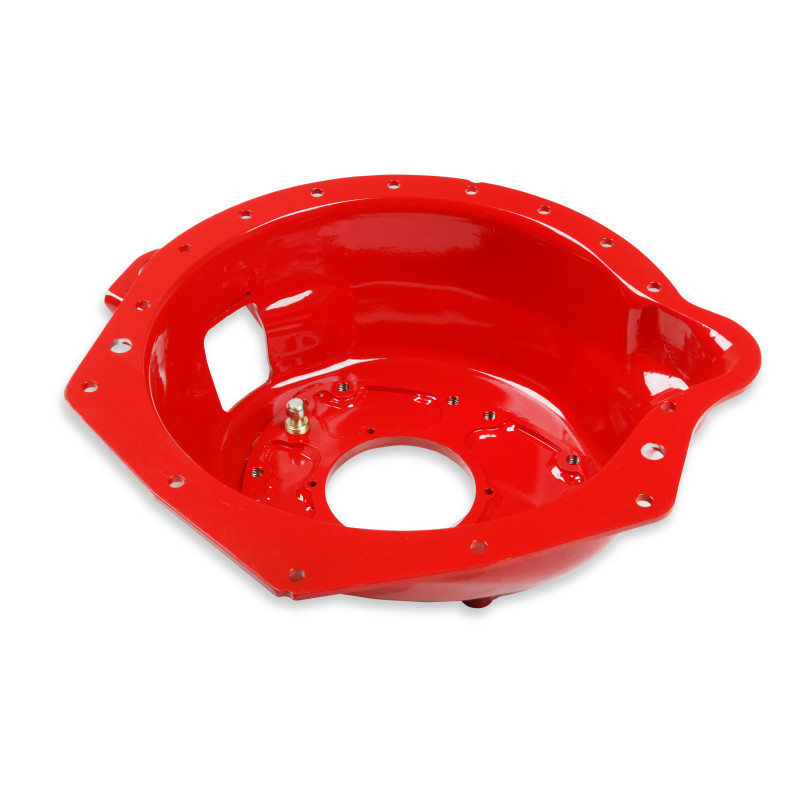

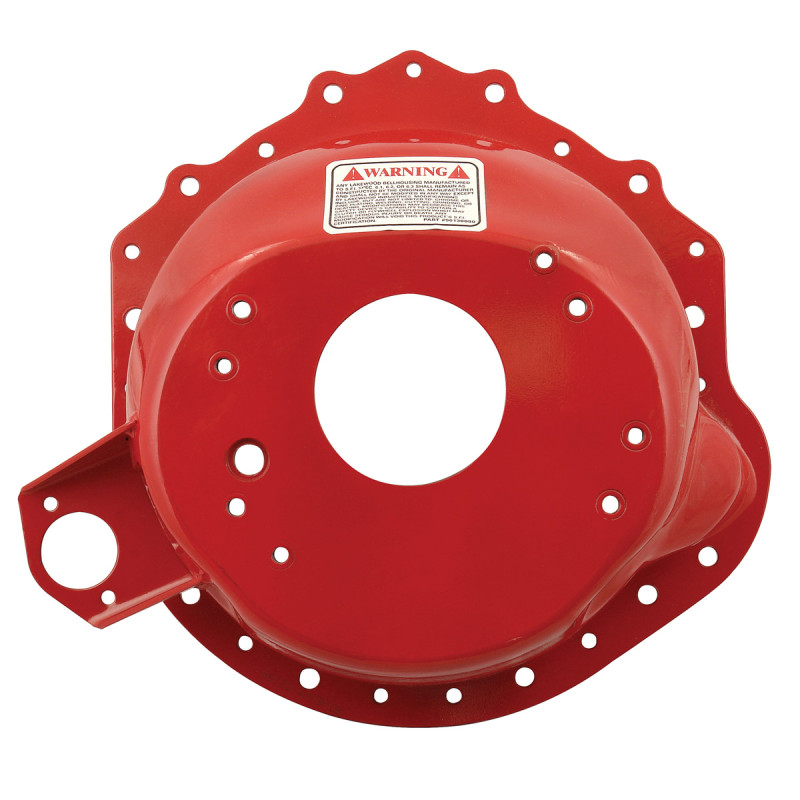

Lakewood Bellhousing - GM
- Brand Lakewood
- Model 15020
- Availability Available To Order

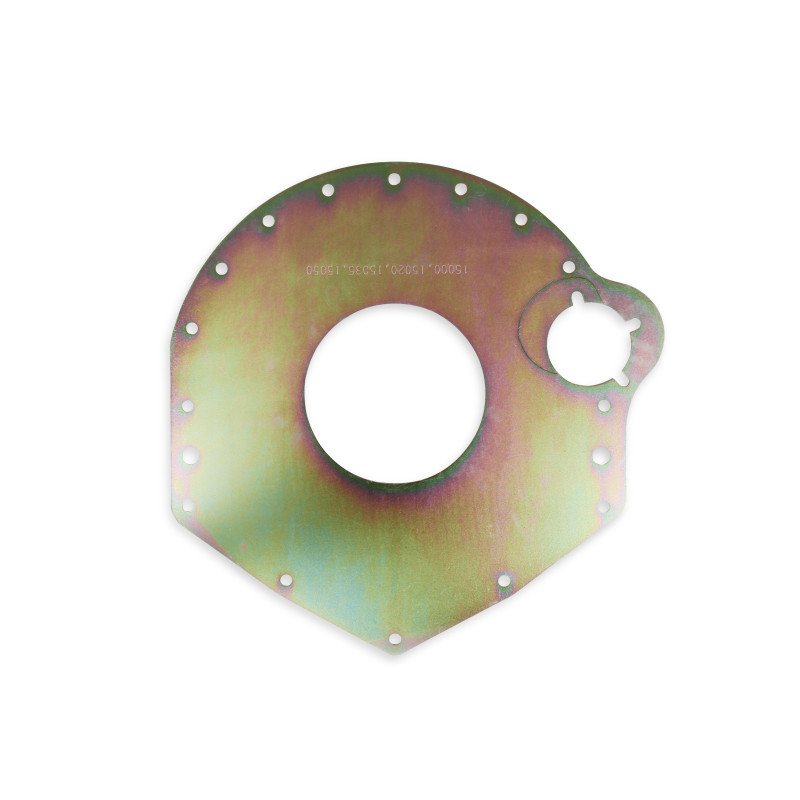

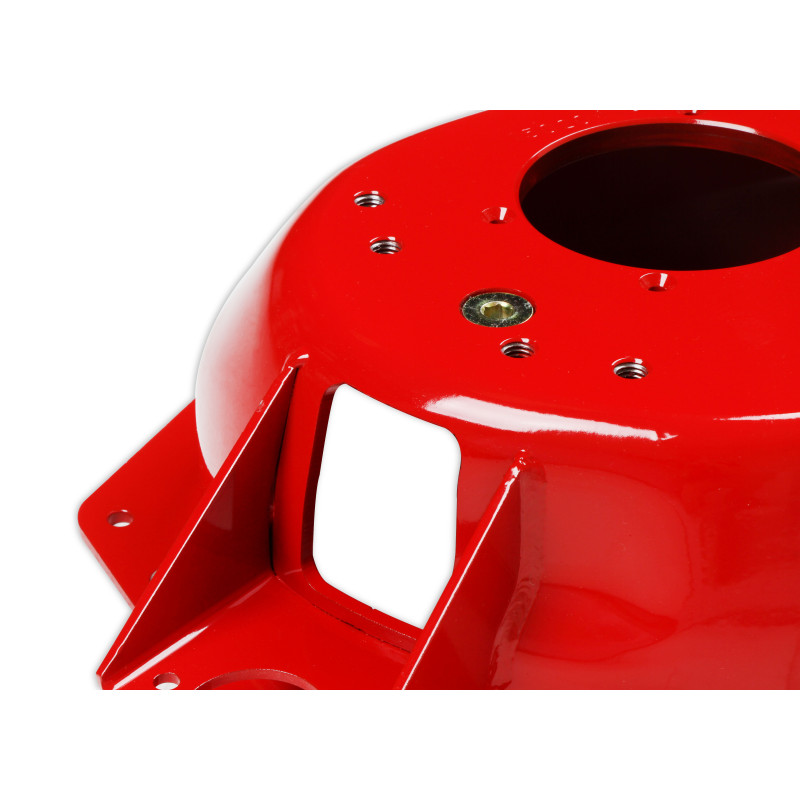

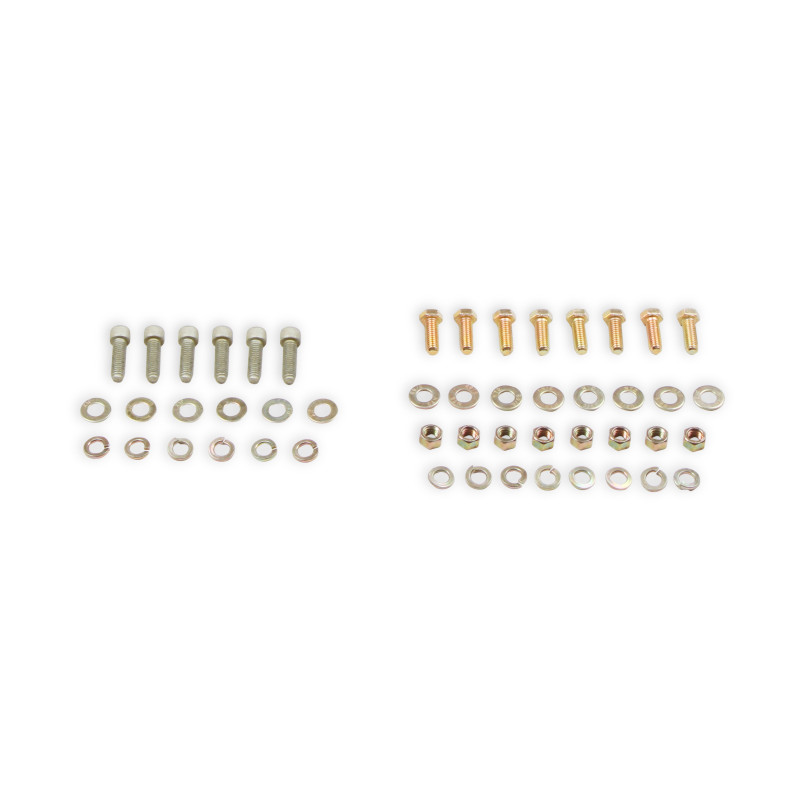

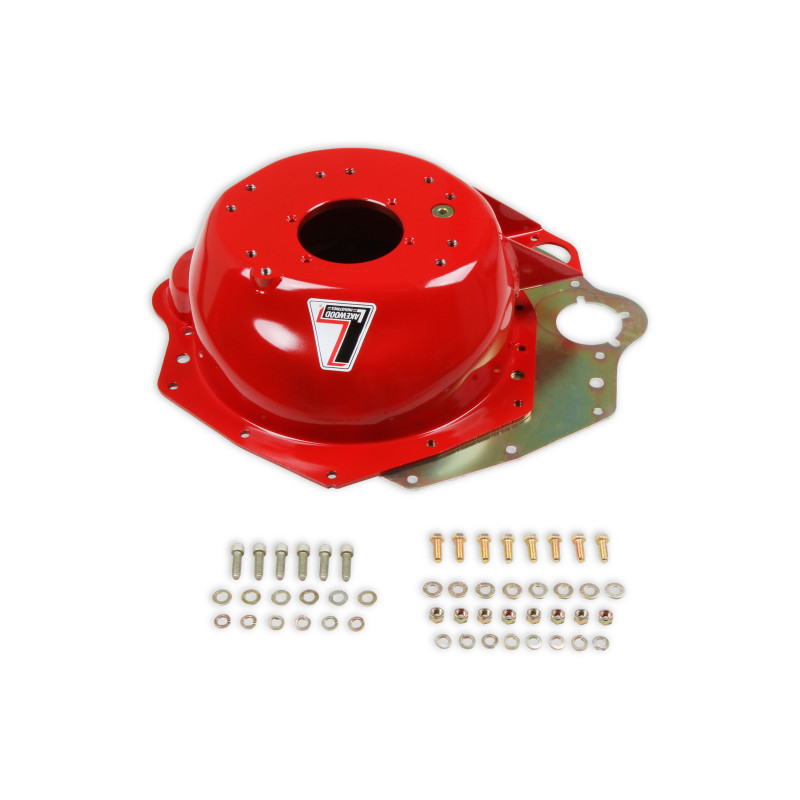

OEM starters are recommended for ease of fitment. It is very important that the tooth count (153 or 168) of the starter match the tooth count of the flywheel to ensure proper engagement. Two primary options: a 12 3/4-inch flywheel (153 teeth) where the nose cone will have two attachment bolt holes across from each other (inline) and a 14-inch flywheel (168 teeth) where the attachment bolt holes will be offset (diagonal). This applies mainly to factory GM starters on passenger cars/light trucks and does not apply to later model versions (w/ gear reduction) or aftermarket and mini starters. Be sure to match your clutch to your flywheel as well.For 1984-1992 Camaro And Firebird Chassis Designed for use with Factory Hydraulic Clutch Linkage and Pull Cable with External Slave Cylinder Drilled for 17 degree canted BW T-5 Drilled for 17 degree canted BW T5 S.F.I. 6.1 Approved Fits 153 And 168 Tooth Flywheel Bellhousing is 6.45 inches Deep Block Plate And Grade 8 Hardware Included Hydro-formed Designed Bellhousing is Roto-brated After Welding Red Powder Coated Finish
Features
References
| Brand | Lakewood |
| Category | Transmission & Drivetrain |
| Product Code | 7015601 |
| SKU: | 15020 |
Specifications
| Brand | Lakewood |
| Emission Code | 5 |
| Product Type | Bellhousing |
| Engine | Chevrolet Small Block Gen I, GM 90 Degree V6, Pontiac V8 |
| Color | Red |
| Material | Steel |
| Transmission Type | Manual |
| Transmission | Bert Racing, BorgWarner, Brinn Racing, Jerico, Muncie, Richmond, Saginaw, T10, T5 GM, TKO 500/600 GM, TKX GM |
| SFI Approved | Yes |
| Weight | 36 |
| Flywheel | 153 or 168 Tooth |
| Engine Make | Chevrolet |
| Make | Chevrolet |
| Clutch | 11" |
| Clutch Operation | Mechanical Fork with External Slave |
| Height | 6.45 |
| SFI Certification | 6.1 |
| Trans. Bore Diameter | 4.685 |
