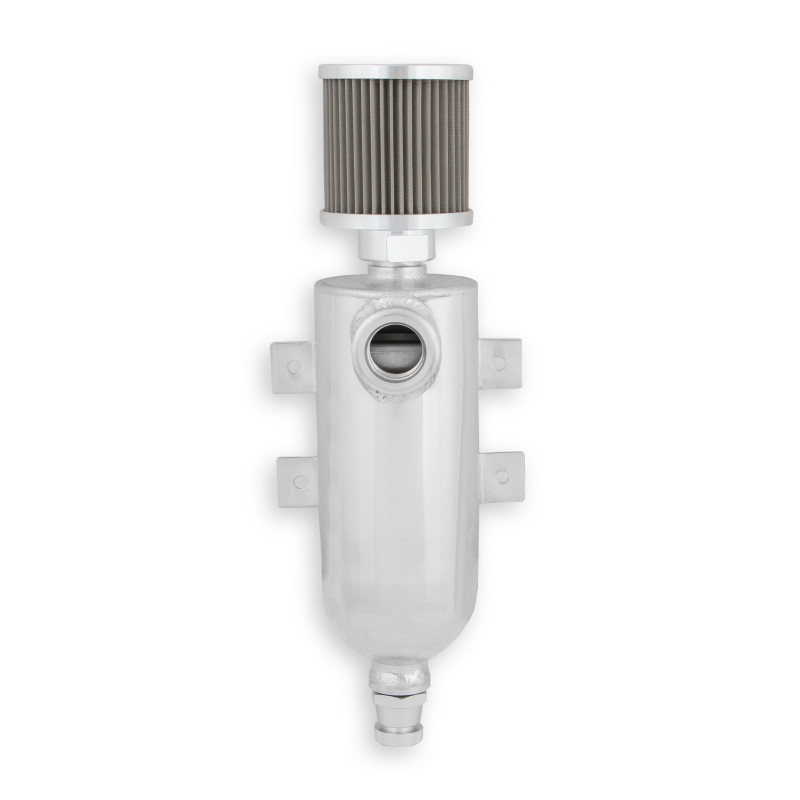

Earl's breather tanks are made from 6061 aluminum and have internal oil baffling. These tanks feature a -12 AN O-ring inlet port, knurled drain valve with an optional 1/8" NPT outlet port for use with a remote drain (or to drain back to the oil pan), w/ 4-bolt mounting brackets. Includes a heavy duty stainless steel mesh filter which has a billet aluminum housing to reduce weight. The filter may be removed to expose a -12AN Male. Ideal for use in all racing applications (i.e. engine PCV, dry sump tanks, transmissions, and rear-end venting). Choose from black anodized or polished aluminum finish.

Features

6061 Aluminum Catch Tanks w/ Baffle Inside

Choose from Polished Aluminum or Black Anodized Finish

Dimensions: Overall Height 13.25” x Diameter 3.15” x Depth 3.20”

4-Bolt Mounting Brackets – Bolt Pattern 4.13” x 2.40”, Overall Bracket Width 5.07

Inlet: -12 AN ORB Female

Drain w/ Knurled Screw & 1/8” NPT Outlet (for optional remote drain)

Billet Aluminum Housing with Stainless Steel Mesh Filter w/ -12 AN Female Inlet

Welded Construction

Capacity: 0.75L

Meets Requirements of Most Racing Sectioning Bodies – for Oil Catch Tank

Weight: 1.5 LB

Pressure Tested to 75psi
