Holley Aluminum fuel cells come in a several variations for nearly every race application. They are offered in both flat bottom and rear sump variations to prevent fuel starvation under heavy acceleration. These fuel cells feature -10AN ORB fittings on the feed, return and vent ports, for high flow support and easy plumbing. They are made from 2.5mm thick 5052 TIG welded aluminum, with triangulated mounting tabs for added support and long-term reliability. The Holley aluminum fuel cells contain anti-slosh foam that is pre-cut to accept Holley fuel level senders. This foam is not E-85 compliant and should be removed if that fuel type is used. Compatible with the single and dual in-tank fuel pump modules.

Features

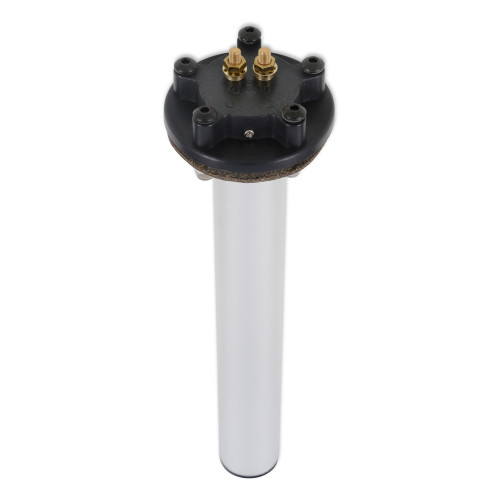

0-90 Ohms (empty-full) works with most aftermarket gauges

Standard SAE 5-bolt mounting pattern

Tube design acts a damper for consistent readings

Save space and eliminate need for a float arm

Comes with gasket and mounting hardware, E85 compatible

8-inch depth (PN: 19-227) for 5 & 10-gallon fuel cells

9-inch depth (PN: 19-228) for 15 & 20-gallon fuel cells
