The steel shaft that spins the advance and reluctor receives a friction reducing coating plus is guided by a sealed ball bearing and long sintered bushing. This combination provides stable timing signals and spark delivery at any rpm. Triggering chores are handled by MSD's race proven, maintenance-free magnetic pick-up.

Features

CNC machined billet aluminum housing and Dupont Rynite base

No CARB Exemption Order Number

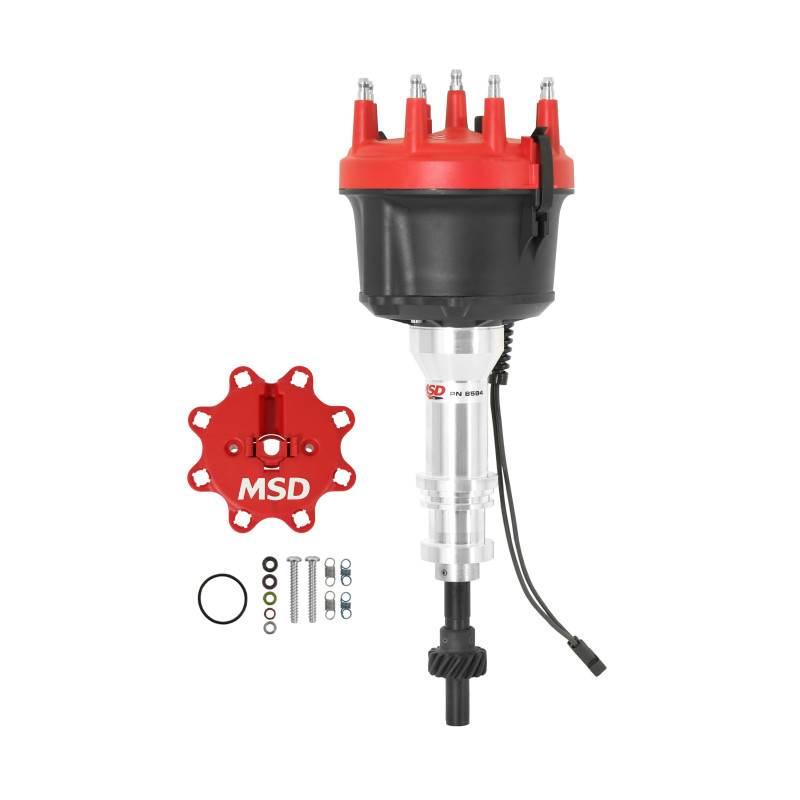

Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)

Mechanical advance assembly can be locked out for crank trigger systems

Nylon pads ensure smooth operation of the advance weights

Advance weight pins are staked and tig welded to the plate

Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction

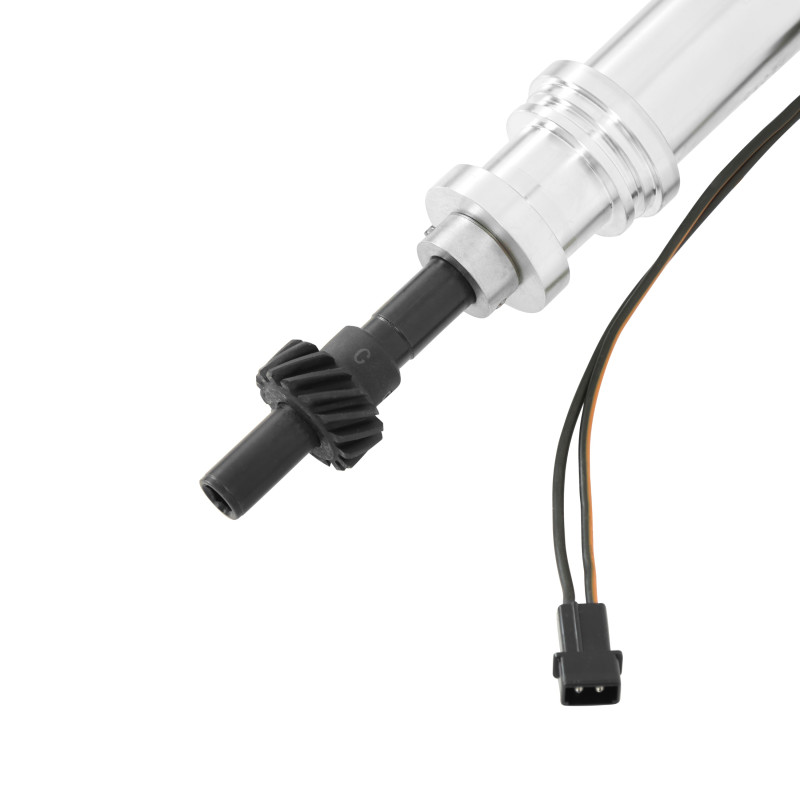

Polished steel shaft is QPQ coated and guided by a sealed ball bearing

Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

Easy-to-adjust mechanical advance with supplied springs and stop bushings
