7402316/4301083FR

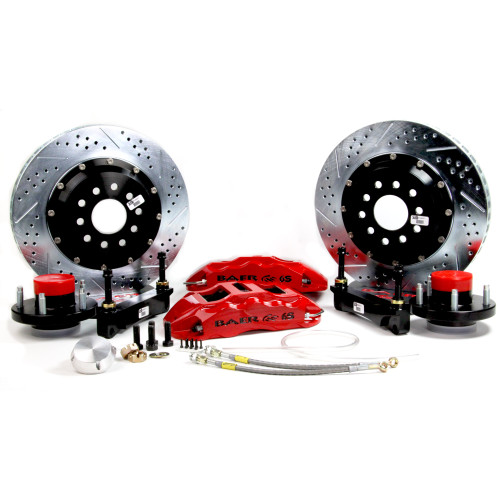

Baer Brakes 14" Extreme+ Front Brake Kit, Fire Red, SDZ, Std. Studs
- Brand Baer Brakes
- Model 4301083FR
- Availability Available To Order
The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels.
Fits 1964-72 GM A-Body, 67-69 F-Body & 64-74 X-Body Cars w/OE Spindles (Also fits DSE, Heidt's, Fatman, Ridetech & L&H Drop Spindles)
References
| Brand | Baer Brakes |
| Category | Newest |
| Product Code | 7402316 |
| SKU: | 4301083FR |
Specifications
| Brand | Baer Brakes |
| Emission Code | 6 |
| Product Type | Front Brakes |
| Product Line | 14 Inch Extreme+ |
| Title | Extreme+ Brake System Front |
| Caliper Color | Fire Red |
| Axle | Front |
| System Notes | Widens track .200" a side on stock front drum brake cars |
| Export Description | Brake Components |
| Min Wheel Dia (verify using template) | 18 (in) |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Surface Type | Slotted, Drilled & Zinc Plated |
| Template | N085P |
| Caliper | 6S |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | D1247 |
| Disc Brake Rotor (Front) Construction | Vented |
| Hose Material | Stainless Steel |
| Lug Count | 5 Lug |
| Prop 65 (C, R or CR) | CR |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.250 (in) |
| Wheel Lug/Bolt Pattern | 5x4.75 |
| Wheel Stud Size | 1/2-20" x 2.25" |
| Grade Type | Performance |
| Rotor Type | 2-Piece |
| Applications | GM A-Body 64-72 |
| Disc Brake Caliper (Front) Piston Quantity | 6 |
| Disc Brake Rotor (Front) Outside Diameter | 14.000 (in) |
| Fitment Notes | w/OE, DSE, Heidt's, Fatman, Ridetech & L&H Drop Spindles |
| Spindle Type | GM AFX (also fits DSE, Heidt's, Fatman, Ridetech & L&H 2" drop spindles) |
| Spindles Included | No |
Specifications
| Brand | Baer Brakes |
| Emission Code | 6 |
| Product Type | Front Brakes |
| Product Line | 14 Inch Extreme+ |
| Title | Extreme+ Brake System Front |
| Caliper Color | Fire Red |
| Axle | Front |
| System Notes | Widens track .200" a side on stock front drum brake cars |
| Export Description | Brake Components |
| Min Wheel Dia (verify using template) | 18 (in) |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Surface Type | Slotted, Drilled & Zinc Plated |
| Template | N085P |
| Caliper | 6S |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | D1247 |
| Disc Brake Rotor (Front) Construction | Vented |
| Hose Material | Stainless Steel |
| Lug Count | 5 Lug |
| Prop 65 (C, R or CR) | CR |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.250 (in) |
| Wheel Lug/Bolt Pattern | 5x4.75 |
| Wheel Stud Size | 1/2-20" x 2.25" |
| Grade Type | Performance |
| Rotor Type | 2-Piece |
| Applications | GM A-Body 64-72 |
| Disc Brake Caliper (Front) Piston Quantity | 6 |
| Disc Brake Rotor (Front) Outside Diameter | 14.000 (in) |
| Fitment Notes | w/OE, DSE, Heidt's, Fatman, Ridetech & L&H Drop Spindles |
| Spindle Type | GM AFX (also fits DSE, Heidt's, Fatman, Ridetech & L&H 2" drop spindles) |
| Spindles Included | No |
