7402780/4301406R

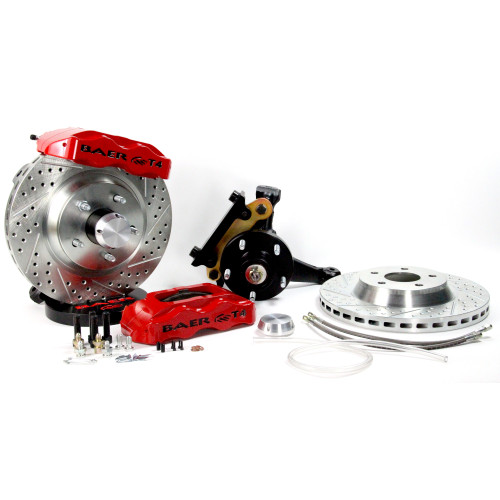

Baer Brakes 13" Track4 Front Brake Kit, Red, SDZ, Std. Studs
- Brand Baer Brakes
- Model 4301406R
- Availability Available To Order
This system features the 4-piston, T4 caliper mounted to a 13", 1 piece slot, drill, zinc plated rotor. The T4 caliper has D.O.T compliant dust and weather seals and uses the popular D0749 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease, billet dust caps and come pre-assembled on stock height spindles. All mounting brackets, stainless braided hoses and hardware are also included. The 13" Track4 is designed to fit most 17" or larger wheels.
Fits 1978-88 GM G-body Vehicles (Comes Assembled on Stock Height Spindles)
References
| Brand | Baer Brakes |
| Category | Newest |
| Product Code | 7402780 |
| SKU: | 4301406R |
Specifications
| Brand | Baer Brakes |
| Emission Code | 6 |
| Product Type | 13 Inch Track 4 Front Brake Kit |
| Product Line | 13 Inch Track4 |
| Title | Track4 Brake System Front |
| Caliper Color | Red |
| Axle | Front |
| System Notes | Comes pre-assembled on modified stock spindles, Widens track width .400" per side |
| Export Description | Brake Components |
| Min Wheel Dia (verify using template) | 17 (in) |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Surface Type | Slotted, Drilled & Zinc Plated |
| Template | Q082H |
| Caliper | T4 |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | D0749 |
| Disc Brake Rotor (Front) Construction | Vented |
| Hose Material | Stainless Steel |
| Lug Count | 5 Lug |
| Prop 65 (C, R or CR) | CR |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.100 (in) |
| Wheel Lug/Bolt Pattern | 5x4.75 |
| Wheel Stud Size | M12-1.50 x 51.5mm |
| Grade Type | Performance |
| Rotor Type | 1-Piece |
| Applications | GM G-Body 78-88 |
| Disc Brake Caliper (Front) Piston Quantity | 4 |
| Disc Brake Rotor (Front) Outside Diameter | 13.000 (in) |
| Fitment Notes | Comes Assembled on Stock Height Spindles |
| Includes Spindles | Yes, Stock Height |
| Front | |
| Baer Brakes | |
| T4 | |
| Red | |
| Fixed | |
| D0749 | |
| Vented | |
| 6 | |
| Brake Components | |
| Performance | |
| Stainless Steel | |
| 5 Lug | |
| 17 (in) | |
| 13 Inch Track4 | |
| 13 Inch Track 4 Front Brake Kit | |
| CR | |
| WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov | |
| Yes | |
| 1.100 (in) | |
| 1-Piece | |
| Slotted, Drilled & Zinc Plated | |
| Comes pre-assembled on modified stock spindles, Widens track width .400" per side | |
| Q082H | |
| Track4 Brake System Front | |
| 5x4.75 | |
| M12-1.50 x 51.5mm |
