7403119/4301618FR
Baer Brakes 13" Track4 Front Brake Kit, Fire Red, SDZ, Std. Studs
- Brand Baer Brakes
- Model 4301618FR
- Availability Available To Order

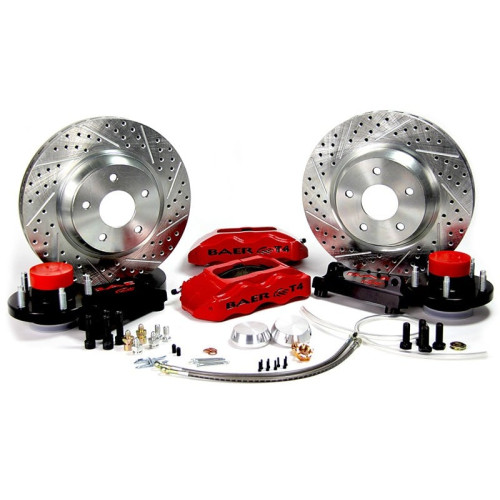

This system features the 4-piston, T4 caliper mounted to a 13", 1 piece slot, drill, zinc plated rotor. The T4 caliper has D.O.T compliant dust and weather seals and uses the popular D0749 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 13" Track4 is designed to fit most 17" or larger wheels.
Fits 1988-98 Chevy/GMC C1500 2WD Trucks, 92-99 Chevy/GMC C1500 2WD SUV's w/React 2" Drop Spindle
References
| Brand | Baer Brakes |
| Category | Newest |
| Product Code | 7403119 |
| SKU: | 4301618FR |
Specifications
| Brand | Baer Brakes |
| Emission Code | 6 |
| Product Type | 13 Inch Track 4 Front Brake Kit |
| Product Line | 13 Inch Track4 |
| Title | Track4 Brake System Front |
| Caliper Color | Fire Red |
| Axle | Front |
| System Notes | Designed to be used with React 2" drop spindles |
| Export Description | Brake Components |
| Min Wheel Dia (verify using template) | 17 (in) |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Surface Type | Slotted, Drilled & Zinc Plated |
| Template | Q117H |
| Caliper | T4 |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | D0749 |
| Disc Brake Rotor (Front) Construction | Vented |
| Hose Material | Stainless Steel |
| Lug Count | 5 Lug |
| Prop 65 (C, R or CR) | CR |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.100 (in) |
| Wheel Lug/Bolt Pattern | 5x5.00 |
| Wheel Stud Size | M14-1.50 x 47.5mm |
| Grade Type | Performance |
| Rotor Type | 1-Piece |
| Applications | GM C1500 SUV's 92-99 |
| Disc Brake Caliper (Front) Piston Quantity | 4 |
| Disc Brake Rotor (Front) Outside Diameter | 13.000 (in) |
| Fitment Notes | w/React 2" Drop Spindles |
| Spindle Type | React 2" Drop Spindles |
| Spindle Included | No |
