7403150/4301656R
Baer Brakes 13" Classic Series Front Brake Kit
- Brand Baer Brakes
- Model 4301656R
- Availability Available To Order

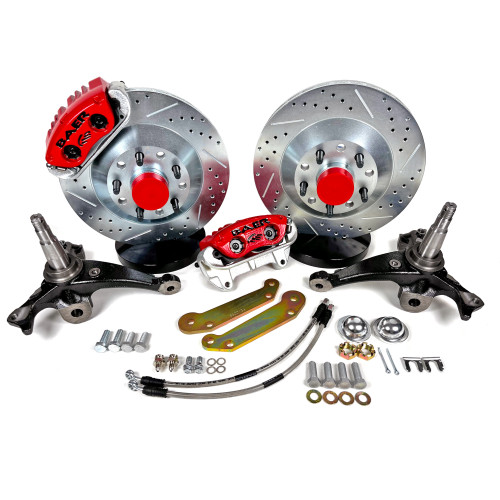

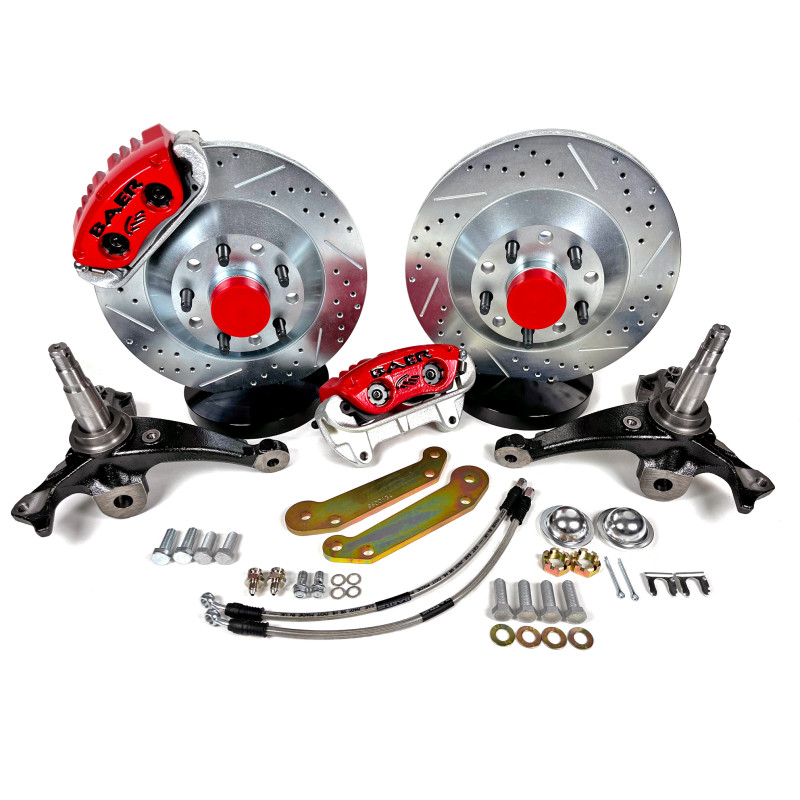

This system features the "Original" Baer 2-piston, pad guided caliper (PGC) mounted to a 13", 1-piece slot, drill, zinc plated integral hub rotor. The PGC caliper comes in a red powder coated finish with a black logo, includes dust/weather seal's and uses the popular D412 pad type. The system includes spindles (not installed), premium bearings with races pre-installed, dust caps, mounting brackets, stainless braided hoses and all necessary hardware making for an easy assembly. The 13" "Classic" system fits most 17" or larger wheels.
**IMPORTANT: This system is designed for vehicles with a 15/16” master cylinder and proper pedal ratio. For manual brake setups, a 7/8” master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16” will require too much pedal input to generate proper line pressure for your brake system.**
Fits 1978-88 GM G-Body Vehicles (Chevy El Camino, Malibu & Monte Carlo, Buick Regal & Grand National, Oldsmobile Cutlass & Pontiac Grand Prix)
References
| Brand | Baer Brakes |
| Category | Newest |
| Product Code | 7403150 |
| SKU: | 4301656R |
Specifications
| Brand | Baer Brakes |
| Emission Code | 6 |
| Product Type | 13 Inch Classic Front Brake Kit |
| Product Line | Classic |
| Title | Classic Series Front Brake Kit |
| Caliper Color | Red |
| Axle | Front |
| Box Count | 2 |
| Prop 65 - Short Label | WARNING: Cancer Harm - www.p65warnings.ca.gov |
| System Notes | Includes modified stock height spindles |
| Export Description | Brake Components |
| Min Wheel Dia (verify using template) | 17 (in) |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Rotor Diameter | 13.000 (in) |
| Rotor Surface | SDZ |
| Surface Type | Slotted, Drilled & Zinc Plated |
| Template | D082H |
| Caliper | 2 PGC |
| Disc Brake Caliper (Front) Type | Floating |
| Disc Brake Pad FMSI Number | D0412 |
| Disc Brake Rotor (Front) Construction | Vented |
| Hose Material | Stainless Steel |
| Prop 65 (C, R or CR) | C |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.100 (in) |
| Wheel Lug/Bolt Pattern | 5x4.75 |
| Wheel Stud Size | 1/2-20 |
| Applications | GM G-Body 78-88 |
