7014347/553-112
Holley EFI 6.86" Pro Dash
- Brand Holley EFI
- Model 553-112
- Availability Available To Order

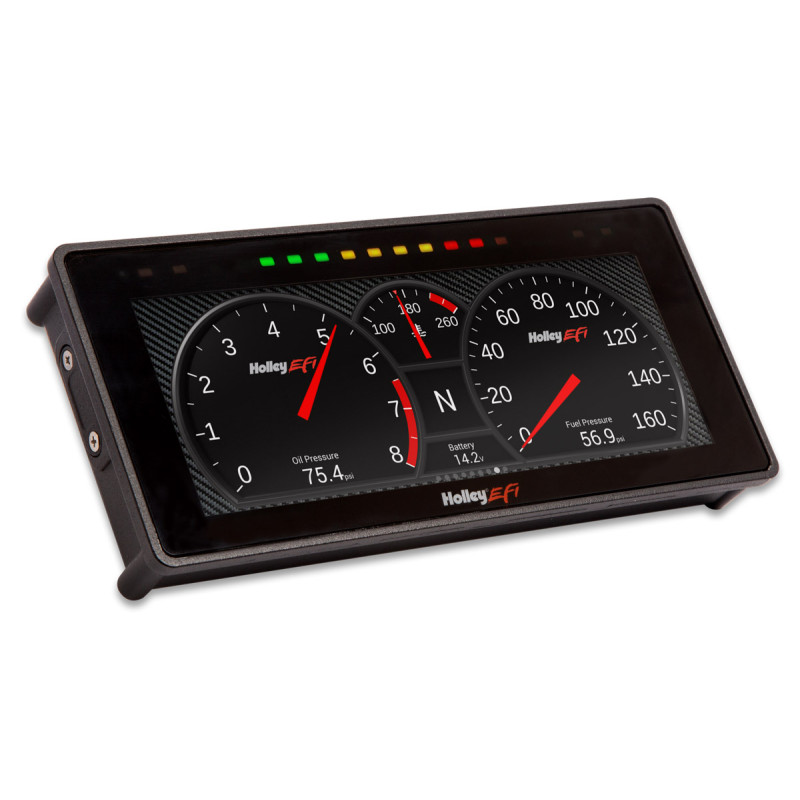

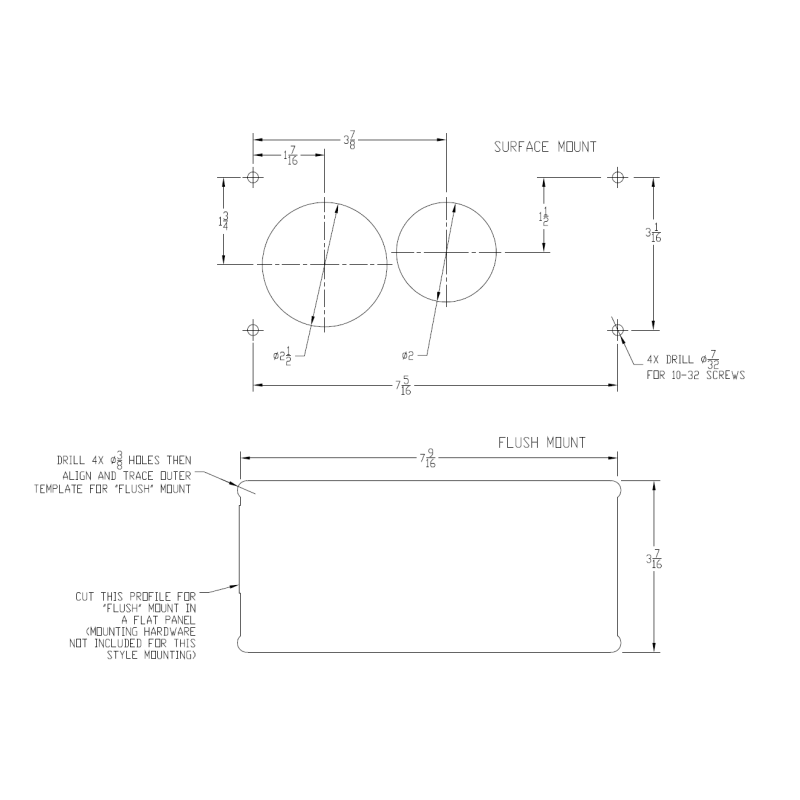

We have also integrated a 10-LED Programmable shift light into the bezel of the dash and added 4 optional LED's that can be programmed for virtually anything, such as fuel pressure or oil pressure warning indicators, or a target boost indicator, the options are almost endless.Plug-and-play Display support for Dominator, HP, Terminator X & Sniper EFI (Not compatible with Sniper 2) Integrated a 10-LED Programmable shiftlight w/ 4-LED warning indicators for other sensor inputs. Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost 10 default background skins pre-loaded with unlimited options for importing custom layouts Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.) Virtual switch panel eliminates the need for external toggle switches Manual or auto-brightness features for easy viewing day or night Built-in GPS with odometer function (Antenna included) On-screen datalog playback features allows you to review vital run information Expandable storage via USB No stylus required, capacitive touch, just like your smart phone. User definable channel alarms and warnings 4x 10-32 mounting holes for surface or flush mounting, with high quality hardware included! Includes everything needed for installation! USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs. User defined alarms for any input Upgradable with future software enhancements Viewing area is 6.86" on the diagonal Dash weight - 1.2 Lbs Real-time ECU tuning - HP/Dominator ECUs only
Features
References
| Brand | Holley EFI |
| Category | Air & Fuel Delivery |
| Product Code | 7014347 |
| SKU: | 553-112 |
Specifications
| Brand | Holley EFI |
| Emission Code | 5 |
| Product Type | 6.86" Digital Dash |
| Sale Category | Gauges and Gauge Accessories |
| Warning | California Proposition 65 |
| Width | 7.5625 |
| Height | 3.4375 |
| Depth | 1.25" |
| Screen Size | 6.86" |
| Screen Type | Capacitive Touch Screen |
Specifications
| Brand | Holley EFI |
| Emission Code | 5 |
| Product Type | 6.86" Digital Dash |
| Sale Category | Gauges and Gauge Accessories |
| Warning | California Proposition 65 |
| Width | 7.5625 |
| Height | 3.4375 |
| Depth | 1.25" |
| Screen Size | 6.86" |
| Screen Type | Capacitive Touch Screen |
