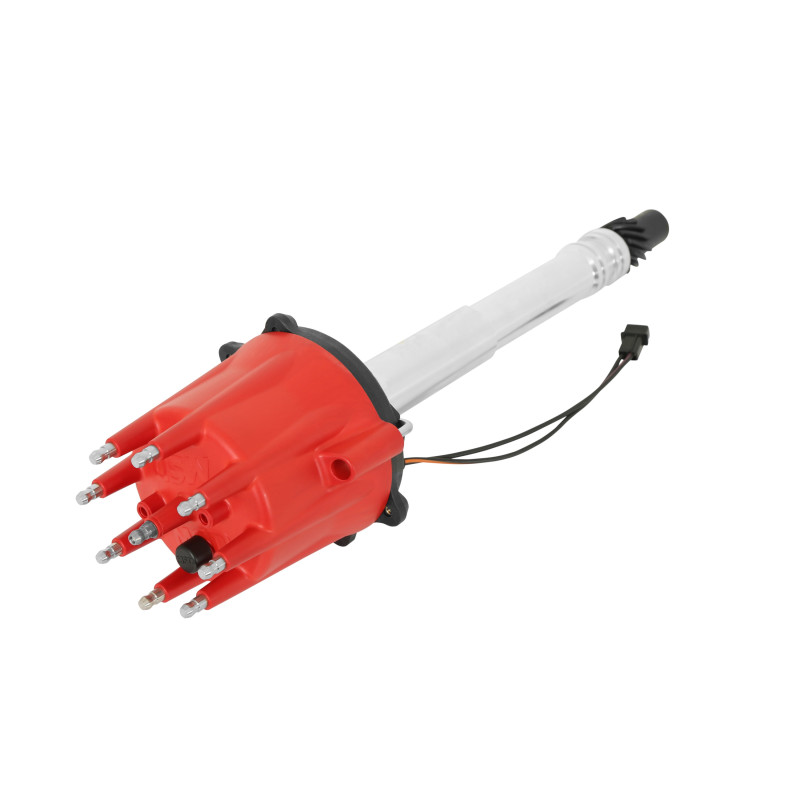

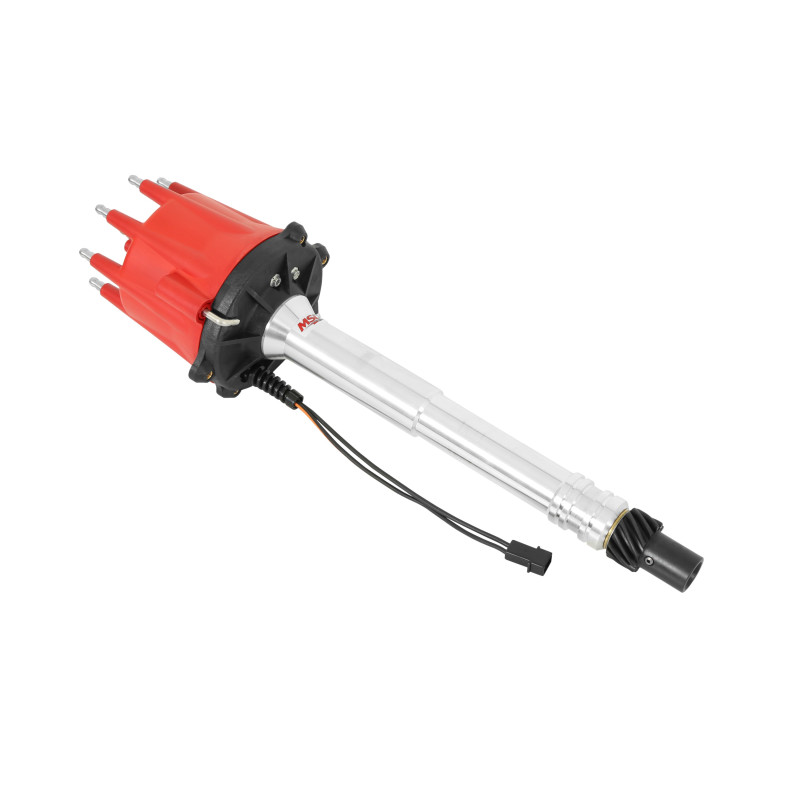

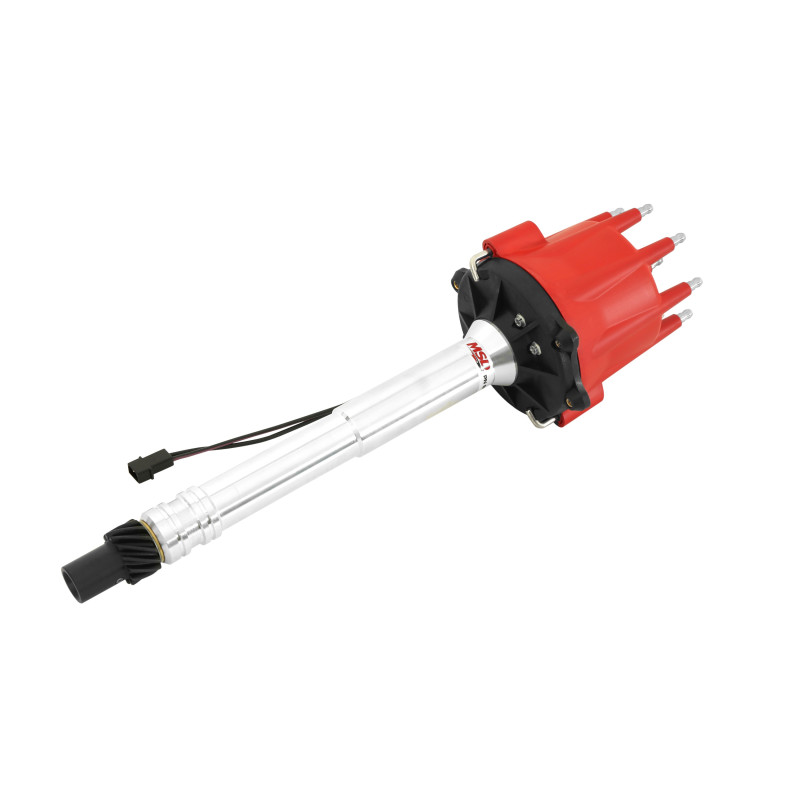

The distributor shares the same features of the standard Pro-Billet Chevrolet model including a ball bearing guide, long sintered lower bushing and an oil seal. To trigger the MSD Ignition a maintenance-free magnetic pick-up is secured in the billet base of the distributor. Just above this pick-up assembly is an adjustable mechanical advance assembly.

Features

Extra tall housing is designed for use with Alan Root, Donovan, Merlin and Rocket racing blocks

Must be used with an MSD Ignition Control

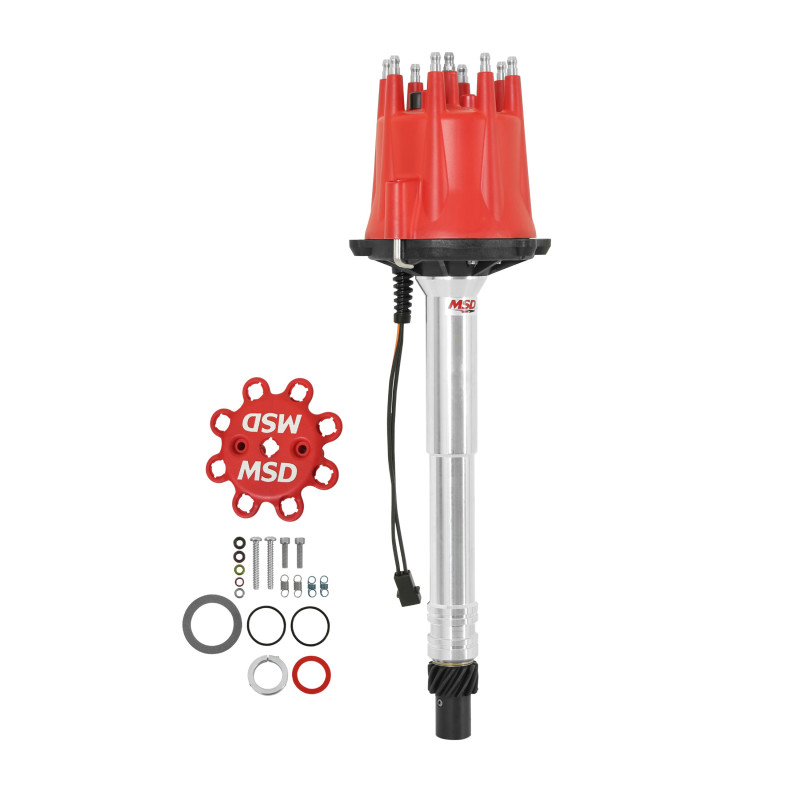

Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)

O-ring seals can be added to modified blocks to improve oil pressure control

Special oil tract improves lubrication to the distributor and cam gear

Nylon pads ensure smooth operation of the advance weights

Advance weight pins are staked and tig welded to the plate

Mechanical advance assembly can be locked out for crank trigger systems

Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction

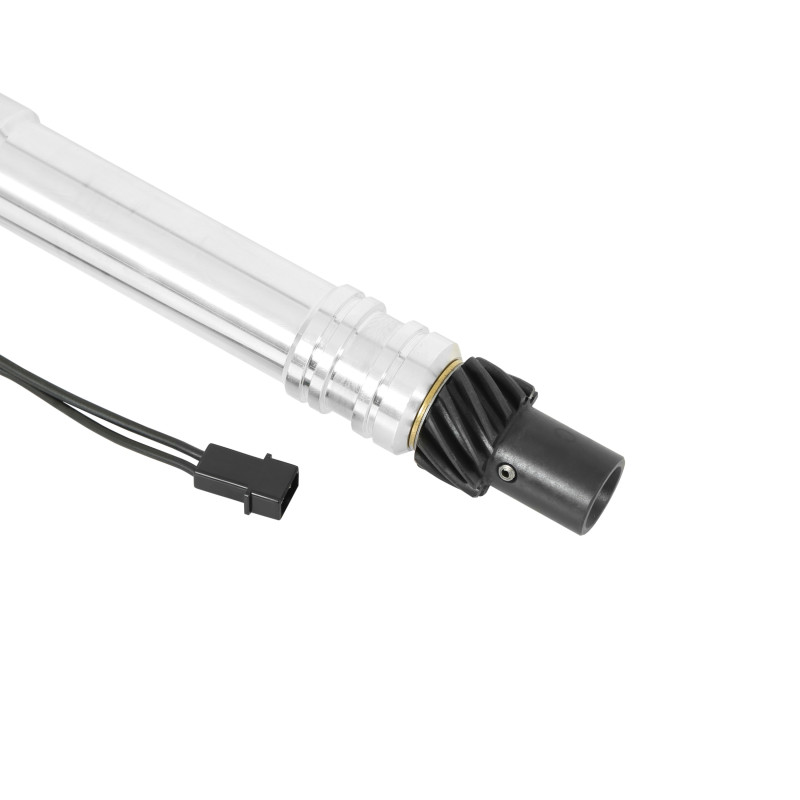

Polished steel shaft is QPQ coated and guided by a sealed ball bearing and long sintered bushing

Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

Adjustable slip collar mounting flange provides up to 3” of adjustment

CNC machined billet aluminum housing and Dupont Rynite base

No CARB Exemption Order Number
