7013687/302-1
Holley GM LS Swap Oil Pan
- Brand Holley
- Model 302-1
- Availability Available To Order

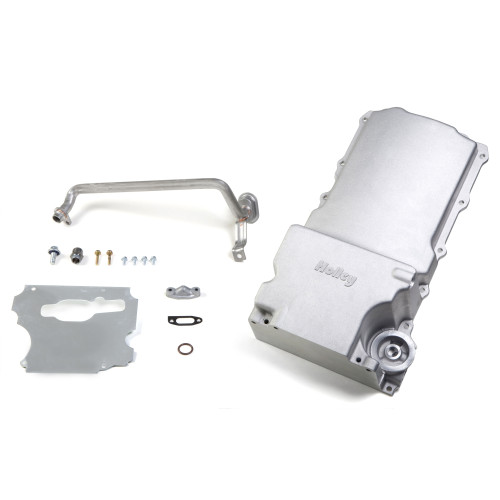

-Christopher Campbell, Popular Hot Rodding MagazineProvides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments Traditional high-quality cast aluminum appearance with clean exterior styling. Provides maximum clearance to chassis Cast and machined aluminum Complete kit including sump baffle, pick-up tube, sump plug, oil filter stud & oil passage cover. Fits GM rear wheel drive applications that were originally equipped with a Small Block or Big Block Chevy engine and traditional rear sump oil pan* Maximum crankshaft stroke = 4.25"
Features
References
| Brand | Holley |
| Category | Engine Swap Parts |
| Product Code | 7013687 |
| SKU: | 302-1 |
Specifications
| Brand | Holley |
| Emission Code | 5 |
| Product Type | Oil Pan Kit |
| Sale Category | Engine |
| Engine | GM Gen III/IV (LS) |
| Finish | Natural Cast |
| Application | GM LS Engines |
| Material | Aluminum |
| Warranty | Limited 90 Day |
| Choose Your Part | Oil Pan Kit |
| Maximum Stroke | 4.25" |
| Oil Pan Type | Cast |
| Oil Pan Capacity | 5.5 Quarts |
| Sump Location | Rear |
| Turbo Oil Drainback | No |
| Windage Tray Included | No |
Specifications
| Brand | Holley |
| Emission Code | 5 |
| Product Type | Oil Pan Kit |
| Sale Category | Engine |
| Engine | GM Gen III/IV (LS) |
| Finish | Natural Cast |
| Application | GM LS Engines |
| Material | Aluminum |
| Warranty | Limited 90 Day |
| Choose Your Part | Oil Pan Kit |
| Maximum Stroke | 4.25" |
| Oil Pan Type | Cast |
| Oil Pan Capacity | 5.5 Quarts |
| Sump Location | Rear |
| Turbo Oil Drainback | No |
| Windage Tray Included | No |
