The SDI E-CLIK Active Suspension System is a semi-active system designed to provide a balance of on-road composure and off-road comfort. It automatically adjusts damping 500 times per second based on terrain and driving conditions, utilizing 12 inputs from the vehicle's OBD2 port and an IMU.

This system includes four 2.5-inch coil-over shocks with a built-in bump zone, main and power harnesses, a color touchscreen controller with Pro Menu, an ECU, and all necessary mounting hardware. The Pro Menu allows for advanced tuning adjustments, including pitch, roll, turn, throttle, and brake sensitivity. The shocks provide 2-3 inches of lift and feature adjustable preload on 650lb springs.

Key features include independent front and rear shock adjustment, payload compensation, and tire size adjustment. It improves traction, braking, and reduces body roll, while enhancing speed capability in rough terrain. The system offers three pre-set terrain modes: Trail, Street, and Desert, all fully adjustable via the Pro Menu. Installation is plug-and-play, requiring no cutting or splicing.

• Semi-Active Suspension system adjusts 500 times/second
• Utilizes 12 inputs from OBD2 and IMU for automatic adjustments
• Independent Front & Rear Shock Adjustment
• Payload Compensation & Tire Size Adjustment
• Improves traction, braking, and reduces body roll
• Enhanced speed capability in rough terrain
• Pro Menu for advanced tuning: Pitch, Roll, Turn, Throttle, & Brake Sensitivity
• Easy Plug & Play Installation (no cutting or splicing)

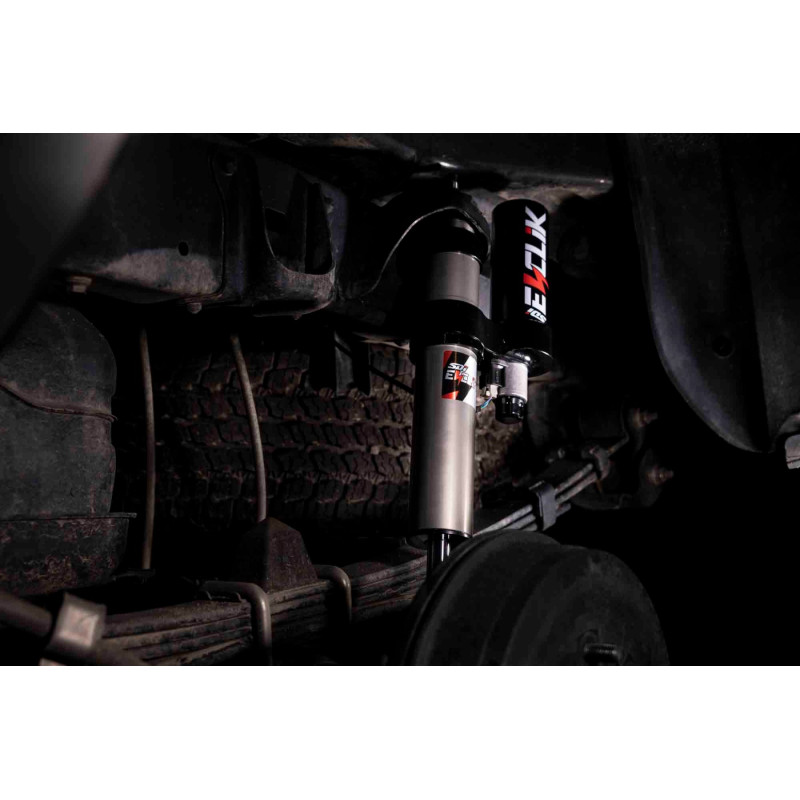

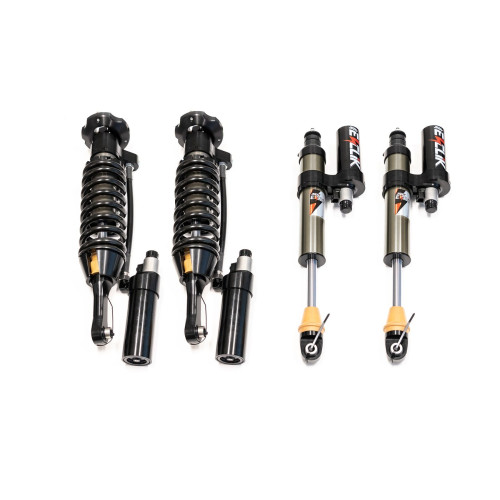

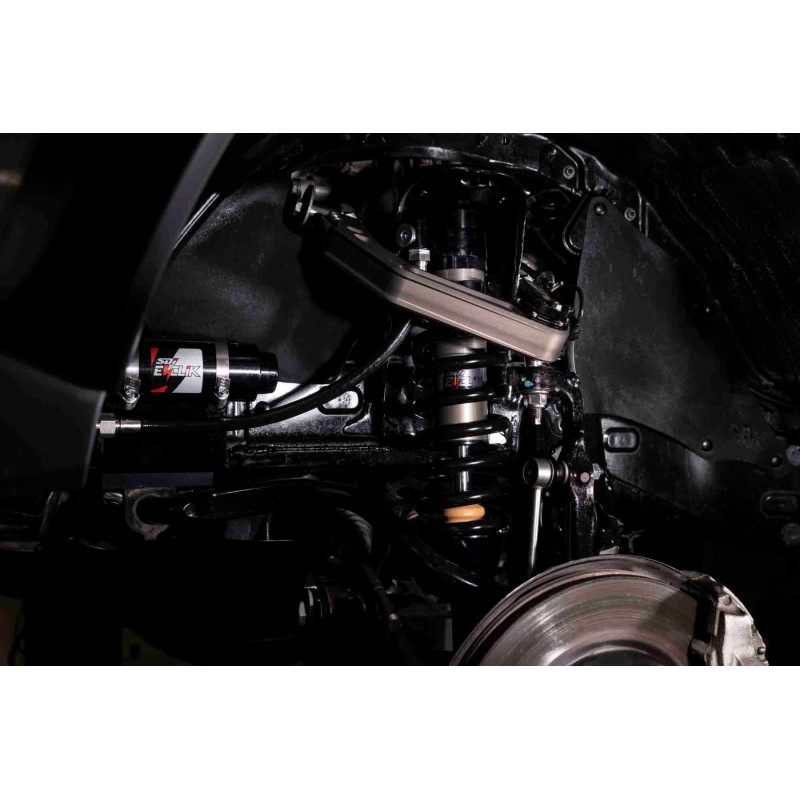

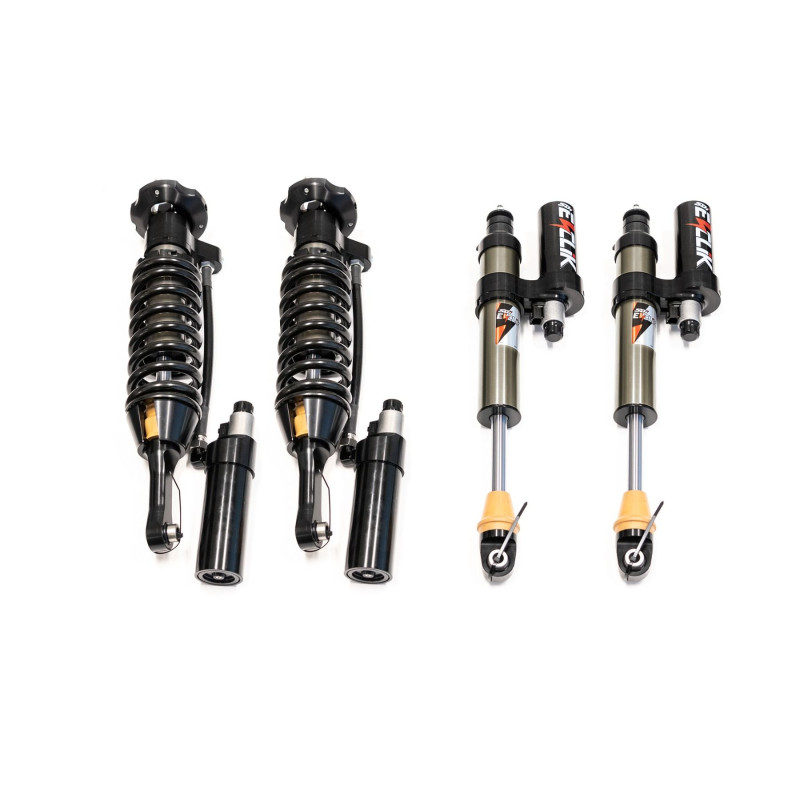

• Four 2.5” Coil-over shocks with built-in bump zone and 7/8ths shafts
• Provides 2-3” of lift on 4Runner models
• Adjustable preload on 650lb spring (700lb spring available separately)

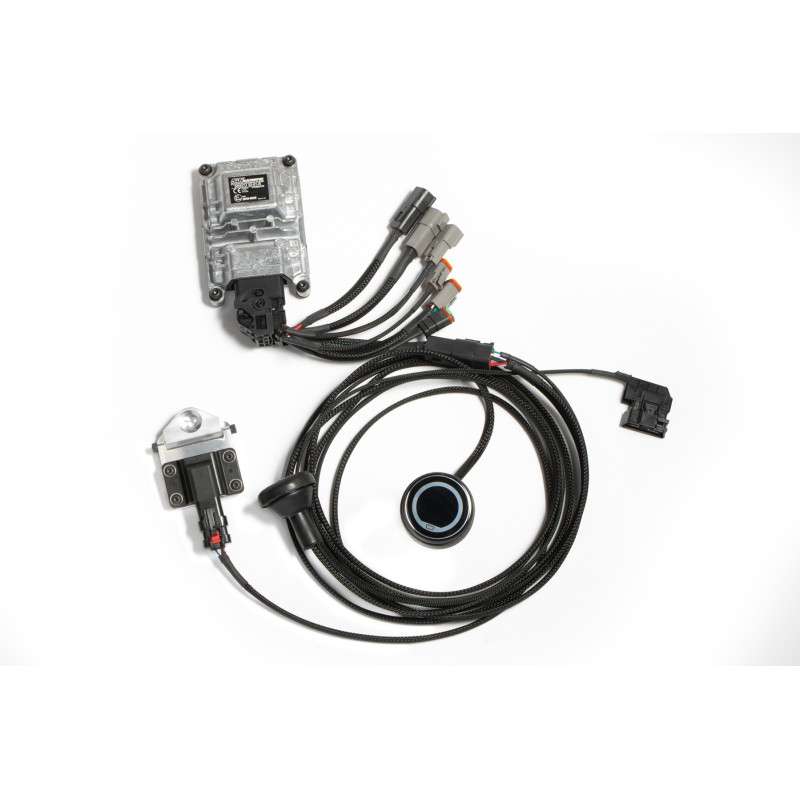

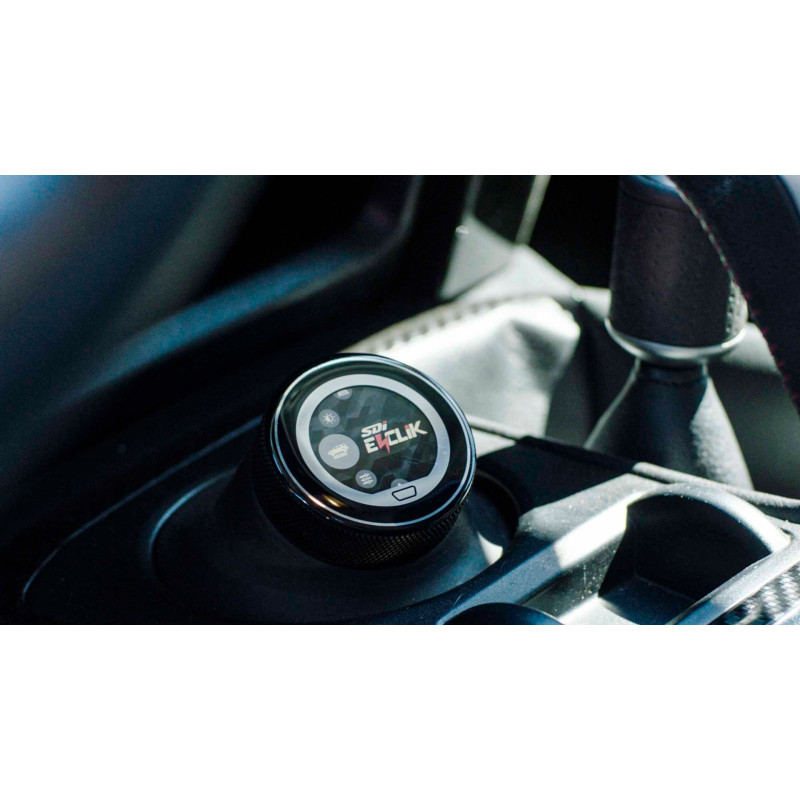

• Includes Main Harness, Power Harness, Color Touch Screen Controller w/ Pro Menu, Controller mount, IMU w/ Bracket, ECU, Front Shock Harness, Rear Shock Harness, Zip-Ties, Fasteners, and Instructions
• Included Terrain Modes: Trail, Street, Desert (fully adjustable)
• Made in the USA
• Recommended Wheel Size: 17x8.5 with 4.75” Backspace / 0mm Offset
• Recommended Tire Size: 285/70R17
• Models with KDSS require different front reservoir brackets (available from SDi)
• Average Install Time: 2-3 Hours for Shocks, 2 Hours for Electronics
• Compatible with rear leaf springs (1.5" Minimum Rear Lift Recommended)
• Strongly suggests installation of aftermarket upper control arms
