7001176/118002BM

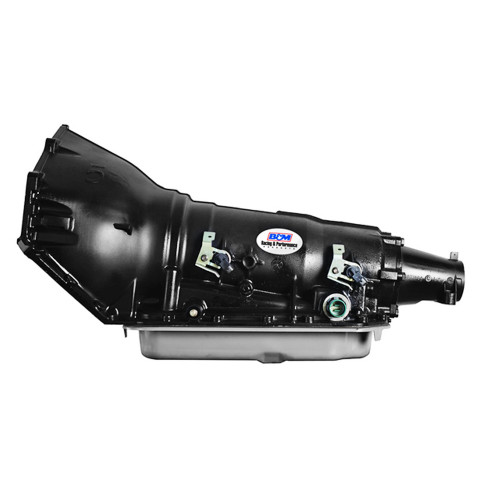

B&M Street/Strip Automatic Transmission - GM 4L80E (97+)
- Brand B&M
- Model 118002BM
- Availability In Stock
B&M's Street/Strip transmission is a complete ready to run unit (less torque converter) for high performance street and mild dragstrip use. The transmission provides firm shifts and features a standard shift pattern, these are the finest available for street and strip use. The Street/Strip GM 4L80E automatic transmission fits GM models 1997-2015. Features a 34-element intermediate sprag, high energy intermediate band, new overdrive sprag assembly, new low roller assembly, performance friction materials, all new solenoids and wiring harness, recalibrated valve body, performance pump assembly, steel forward hub. Designed for a maximum of 800 horsepower and 650 ft/lbs of torque. Can be used with HGM Compushift controller for transplant applications.Designed for up to 800 horsepower & 650 ft/lbs of torque All new high performance friction plates Rebuilt performance pump assembly 34-element intermediate sprag High energy intermediate band New overdrive sprag assembly Fully recalibrated valve body New low roller assembly Includes front speed sensor Uses slip-yoke style out-put
Features
References
| Brand | B&M |
| Category | Transmission & Drivetrain |
| Product Code | 7001176 |
| SKU: | 118002BM |
Specifications
| Brand | B&M |
| Emission Code | 5 |
| Product Type | Transmission |
| Sale Category | Transmission and Drivetrain |
| Warning | California Proposition 65 |
| Color | Black |
| Automotive Item Grade | High Performance |
| 2WD/4WD | 2WD |
| California Proposition 65 Chemical Name | Benzene, Chromium (hexavalent compounds), Lead |
| Transmission Type | Automatic |
| Disclaimer | Transmission shipped without speedometer driven gear or housing |
| Transmission Speeds | 4 |
| Transmission Model | 4L80E |
| Built-In Transmission Shield | No |
| Case Material | Cast Aluminum |
| Control Type | Electronic |
| Cooler Included | No |
| Core Change Applicable | No |
| Dipstick Included | No |
| Drive Type | RWD |
| Friction Plates | New |
| Gear Ratio-First | 2.48 |
| Gear Ratio-Fourth | 0.75 |
| Gear Ratio-Second | 1.48 |
| Gear Ratio-Third | 1.00 |
| Horsepower Rating (HP) | 800 |
| part type | High Performance |
| Reverse Gear Ratio | 2.08 |
| Torque Converter Included | No |
| Torque Rating (Ft/Lbs) | 650 |
| Transbrake | No |
| Transmission Series | Street/Strip |
| Valve Body Pattern | Forward |
| Valve Body Type | Automatic |
| Input Spline Count | 35 |
| Output Spline Count | 32 |
Specifications
| Brand | B&M |
| Emission Code | 5 |
| Product Type | Transmission |
| Sale Category | Transmission and Drivetrain |
| Warning | California Proposition 65 |
| Color | Black |
| Automotive Item Grade | High Performance |
| 2WD/4WD | 2WD |
| California Proposition 65 Chemical Name | Benzene, Chromium (hexavalent compounds), Lead |
| Transmission Type | Automatic |
| Disclaimer | Transmission shipped without speedometer driven gear or housing |
| Transmission Speeds | 4 |
| Transmission Model | 4L80E |
| Built-In Transmission Shield | No |
| Case Material | Cast Aluminum |
| Control Type | Electronic |
| Cooler Included | No |
| Core Change Applicable | No |
| Dipstick Included | No |
| Drive Type | RWD |
| Friction Plates | New |
| Gear Ratio-First | 2.48 |
| Gear Ratio-Fourth | 0.75 |
| Gear Ratio-Second | 1.48 |
| Gear Ratio-Third | 1.00 |
| Horsepower Rating (HP) | 800 |
| part type | High Performance |
| Reverse Gear Ratio | 2.08 |
| Torque Converter Included | No |
| Torque Rating (Ft/Lbs) | 650 |
| Transbrake | No |
| Transmission Series | Street/Strip |
| Valve Body Pattern | Forward |
| Valve Body Type | Automatic |
| Input Spline Count | 35 |
| Output Spline Count | 32 |
